2" Deep Louver

201-340-4125

SKU:
L230
2" Deep  Louver

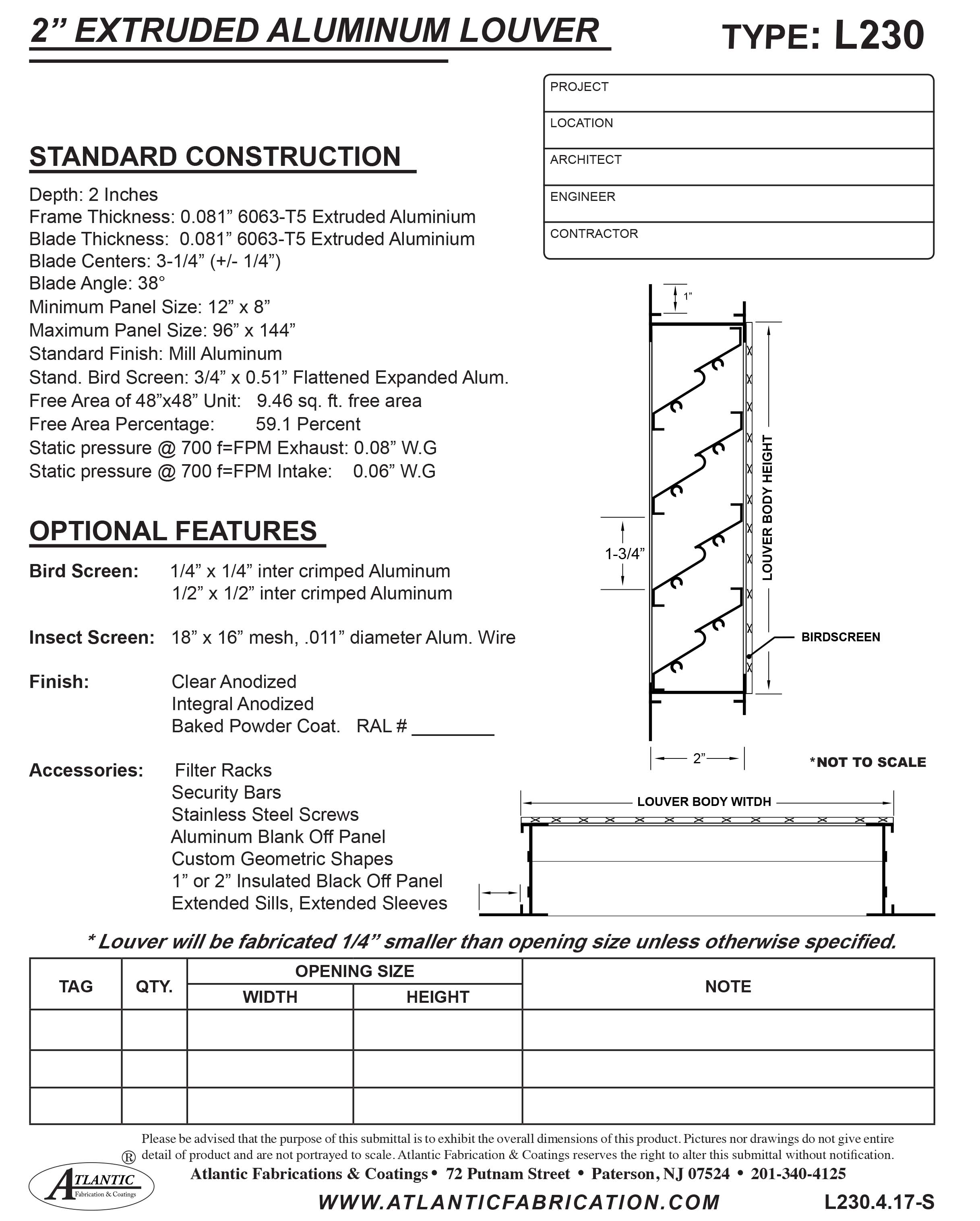

STANDARD CONSTRUCTION

  • Depth: 2 Inches
  • Frame Thickness: 0.081” 6063-T5 Extruded Aluminium
  • Blade Thickness: 0.081” 6063-T5 Extruded Aluminium
  • Blade Centers: 3-1/4” (+/- 1/4”)
  • Blade Angle: 38° Minimum Panel Size: 12” x 8”
  • Maximum Panel Size: 96” x 144”
  • Standard Finish: Mill Aluminum
  • Stand. Bird Screen: 3/4” x 0.51” Flattened Expanded Alum.
  • Free Area of 48”x48” Unit: 9.46 sq. ft. free area Free Area Percentage: 59.1 Percent
  • Static pressure @ 700 f=FPM Exhaust: 0.08” W.G
  • Static pressure @ 700 f=FPM Intake: 0.06” W.G



OPTIONAL FEATURES
  • Bird Screen:
    • 1/4” x 1/4” inter crimped Aluminum
    • 1/2” x 1/2” inter crimped Aluminum
  • Insect Screen:   18” x 16” mesh, .011” diameter Alum. Wire
  • Finish:
    • Clear Anodized
    • Integral Anodized
    • Powder Coat.   RAL # ________
  • Accessories:
    • Filter Racks
    • Security Bars
    • Stainless Steel Screws
    • Aluminum Blank Off Panel
    • Custom Geometric Shapes
    • 1” or 2” Insulated Black Off Panel
    • Extended Sills, Extended Sleeves

* Louver will be fabricated 1/4” smaller than opening size unless otherwise specified
