4" Deep Flange Frame

201-340-4125

SKU:
L430
4" Deep Flange Frame

STANDARD CONSTRUCTION:

  • Depth: 4 Inches
  • Frame Thickness: 0.081” 6063-T5 Extruded Aluminium
  • Blade Thickness:  0.081” 6063-T5 Extruded Aluminium
  • Blade Centers: 3-1/4” (+/- 1/4”)
  • Blade Angle: 36°
  • Minimum Panel Size:  12” x 8”
  • Maximum Panel Size: 96” x 144”
  • Standard Finish: Mill Aluminum
  • Stand. Bird Screen: 3/4” x 0.51” Flattened Expanded Alum.
  • Free Area of 48”x48” Unit:   7.97 sq. ft. free area
  • Free Area Percentage: 48.0 Percent
  • Static pressure @ 980 FPM / 0.15 W.G.
  • Water penetrates beginning point - 730 FPM @ .01oz/sq ft



OPTIONAL FEATURES:

  • Bird Screen:
    • 1/4” x 1/4” inter crimped Aluminum
    • 1/2” x 1/2” inter crimped Aluminum
  • Insect Screen:   18” x 16” mesh, .011” diameter Alum. Wire
  • Finish:
    • Clear Anodized
    • Integral Anodized
    • Powder Coat.   RAL # ________
  • Accessories:
    • Filter Racks
    • Security Bars
    • Stainless Steel Screws
    • Aluminum Blank Off Panel
    • Custom Geometric Shapes
    • 1” or 2” Insulated Black Off Panel
    • Extended Sills, Extended Sleeves

 * Louver will be fabricated 1/4” smaller than opening size unless otherwise specified.

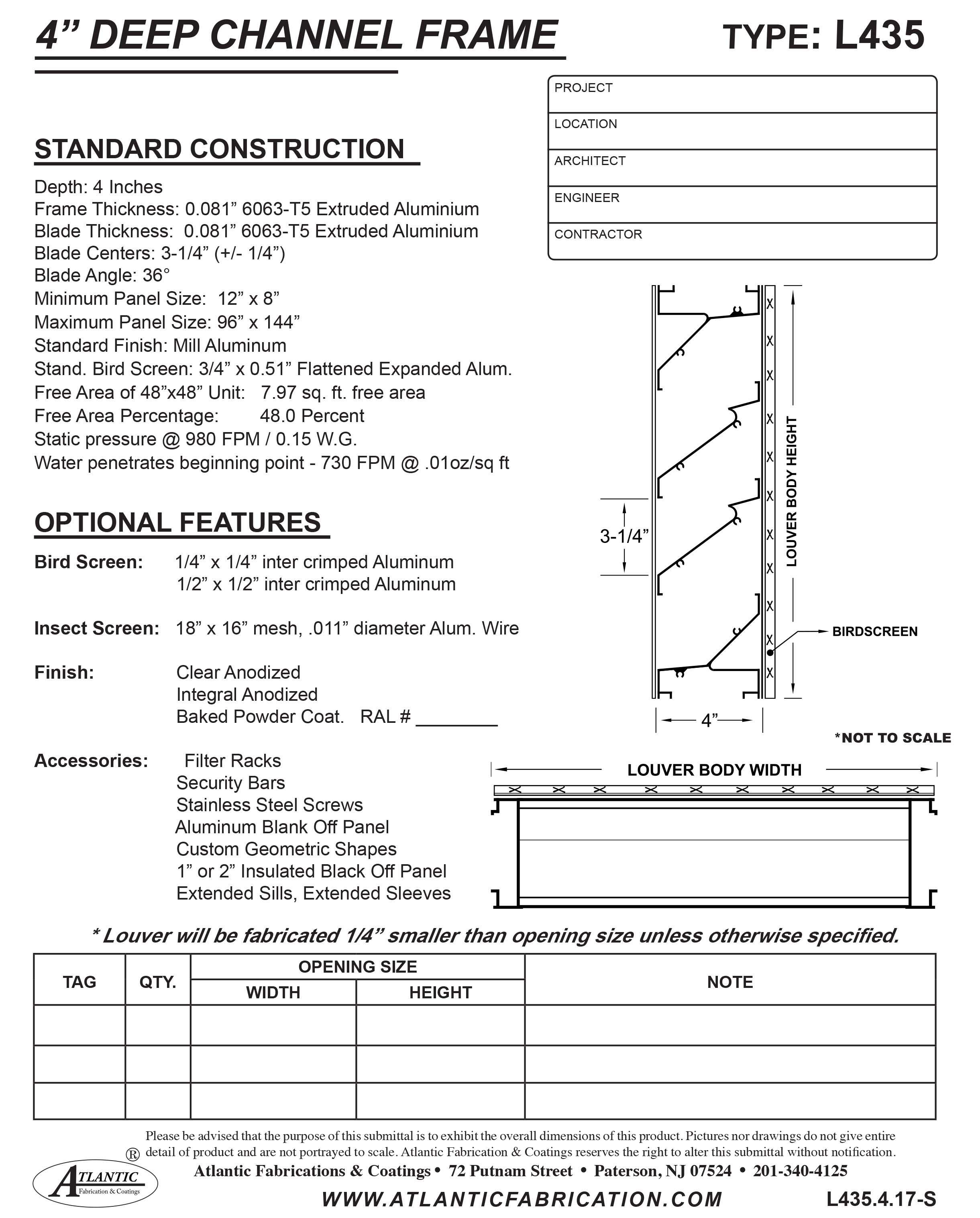

DOWNLOAD SUBMITTAL FORM
